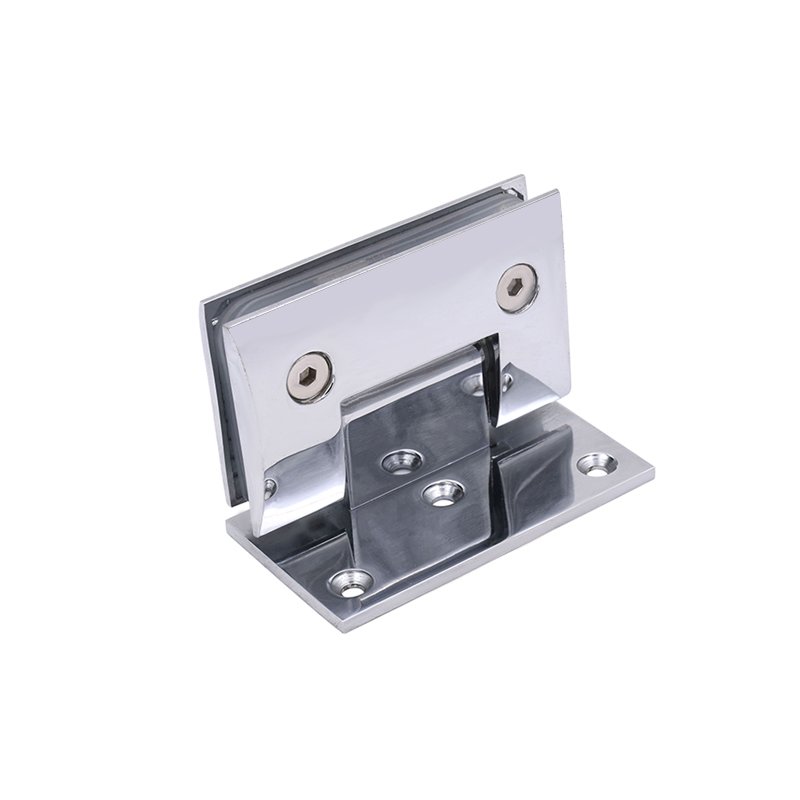

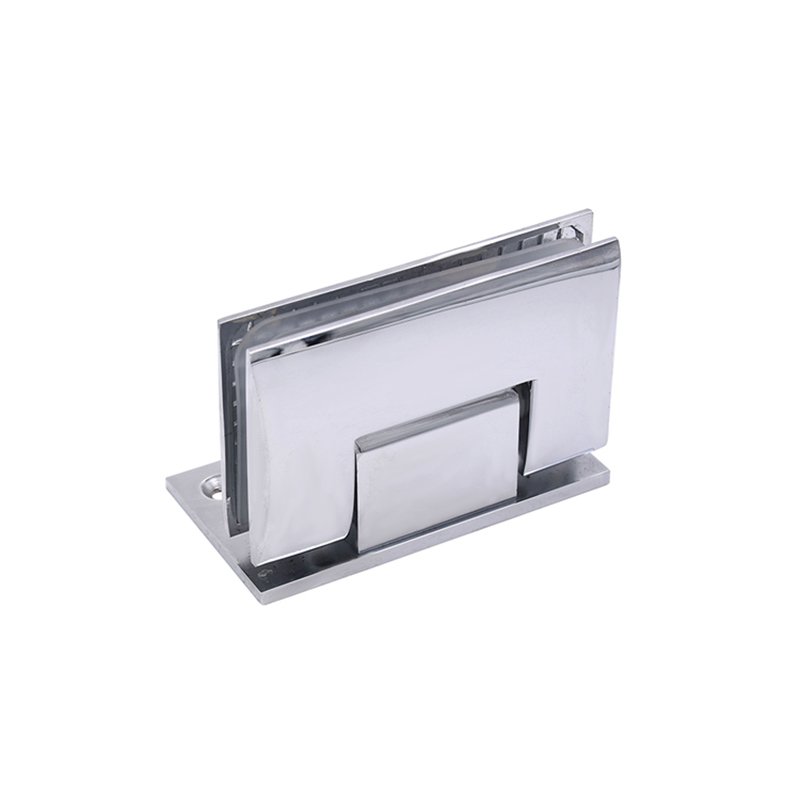

Square Curved Surface Wall Mount Brass Glass Door Hinge Of Full Back Plate
This shower door hinges product is available for distributors, glass shops, installers and project suppliers. It can be matched against a drawing, sample, photograph or required application.
Product Information
- Material: Brass
- Mounting Type: Glass-to-Glass
- Glass Thickness: 8 mm, 10 mm, 12 mm
- Opening Angle: 90°
- Door Application: Shower Door
Additional Supplier Specification
- Hinge Swings: 90 Degrees Inward and 90 Degrees Outward
- Self-Closing within 25 Degrees of Closing Position
- For 5/16" – 1/2" (8 to 12 mm) Tempered Glass
- Bearing Capacity: 40 Kg / 2 Hinges
- Door Wide
- Application: 800-1000mm
- Passes 50,000 Opening & Closing Fatigue Tests
- Passes 48-Hour Salt Spray Test → SVA-211 90° Glass To Wall Offset Back Plate → SVA-213 180° Glass To Glass Single Axes → SVA-213A 180° Glass To Glass Double Axes → SVA-214 135° Glass To Glass → SVA-215 90° Glass To Glass
Ordering & Product Matching
Quote requests should include model CHF-SVA-212, required quantity, glass thickness or opening dimensions, material and finish. OEM packaging and mixed-product orders can be discussed for distributor requirements.

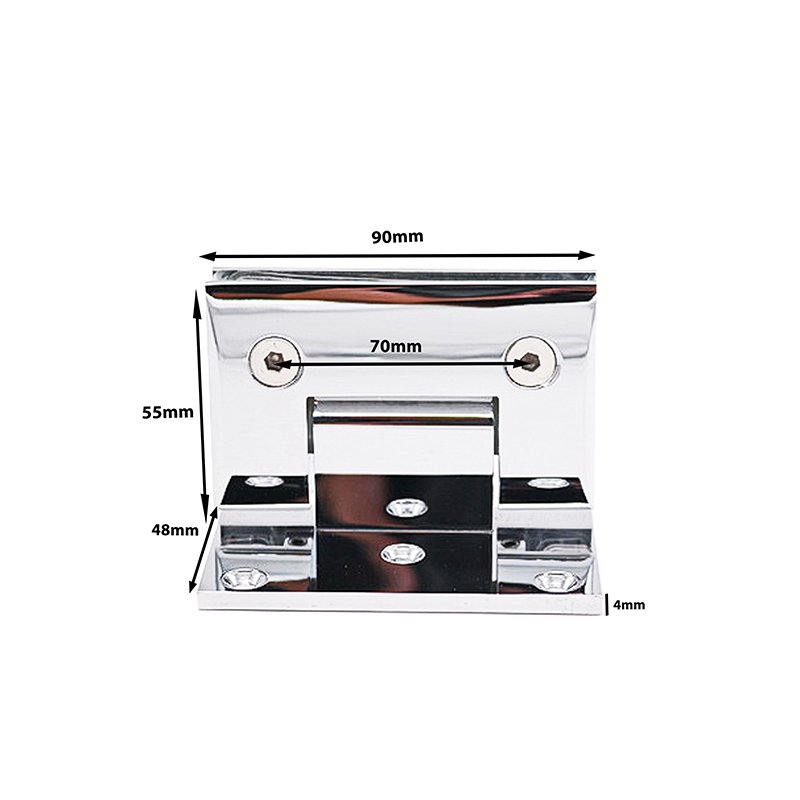

Dimensions and technical suitability must be confirmed against the final drawing, sample or application before ordering.
