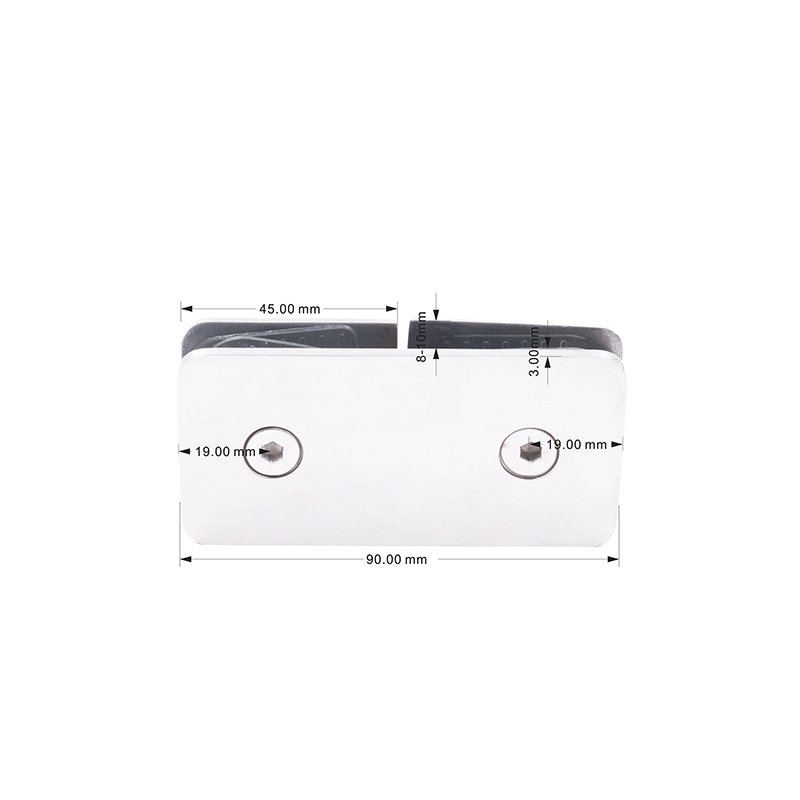

Square Corner 180 Degree Stainless Steel Glass Clamp Shower Door Glass Accessory
This glass clamps product is available for distributors, glass shops, installers and project suppliers. It can be matched against a drawing, sample, photograph or required application.
Product Information
- Material: Stainless Steel
- Mounting Type: Glass-to-Glass
- Glass Thickness: 8 mm
- Opening Angle: 180°
- Door Application: Shower Door
Additional Supplier Specification
- Designed to Secure Fixed 180 Degree Inline Glass Panels Together
- For Use with 5/16" – 1/2" (8 mm to 12 mm) Tempered Glass
- Requires 3/4"（19mm）Diameter Hole for Installation
- Passes 72-Hour Salt Spray Test
Ordering & Product Matching
Quote requests should include model CHF-SVA-014, required quantity, glass thickness or opening dimensions, material and finish. OEM packaging and mixed-product orders can be discussed for distributor requirements.
Dimensions and technical suitability must be confirmed against the final drawing, sample or application before ordering.
