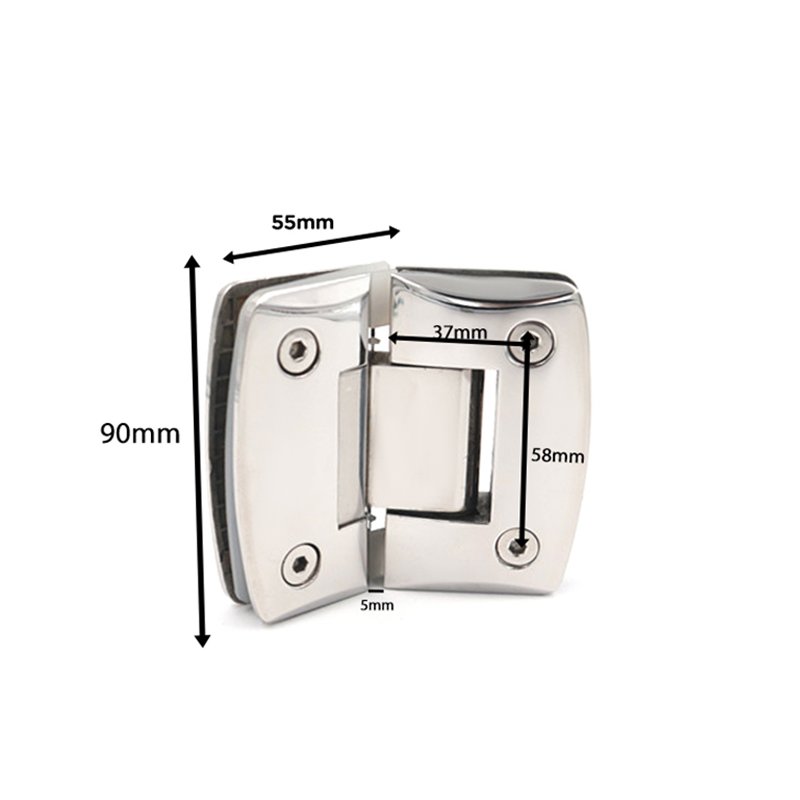

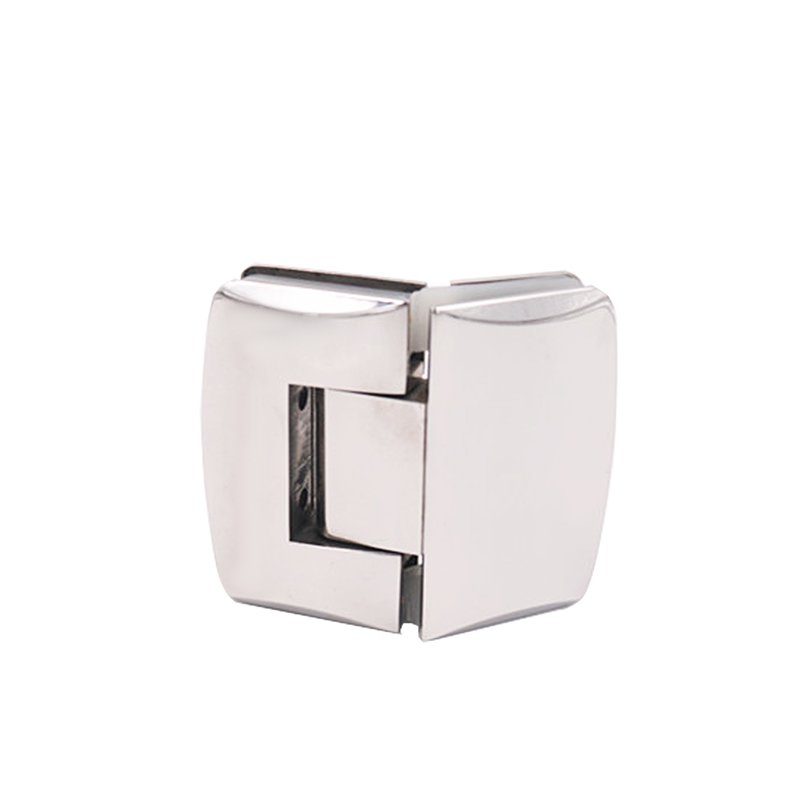

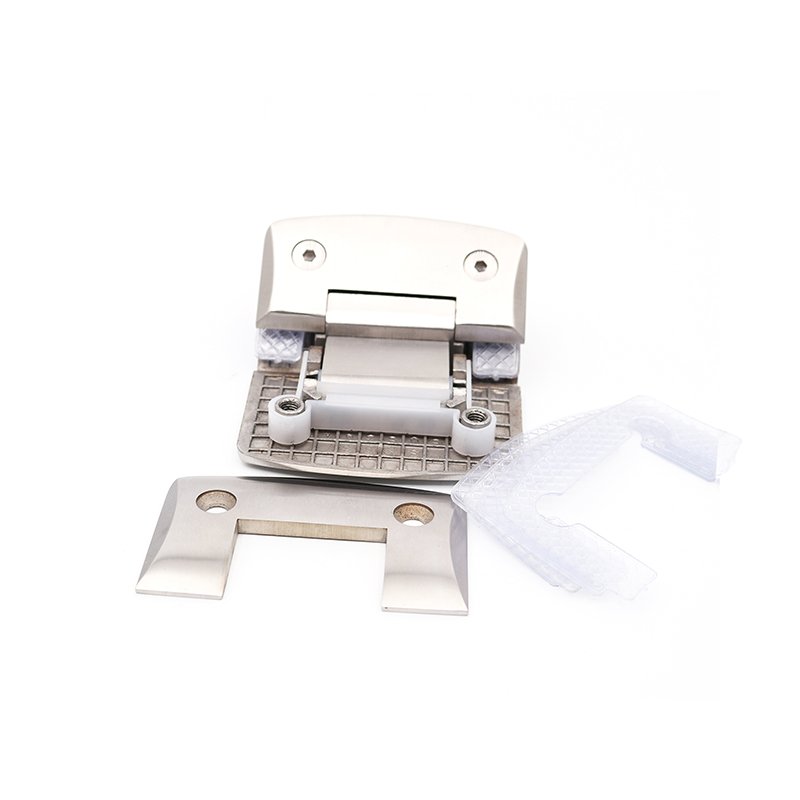

Provide Ddp Curved135 Degree Glass To Chrome Plated Glass Door Hinges
This shower door hinges product is available for distributors, glass shops, installers and project suppliers. It can be matched against a drawing, sample, photograph or required application.
Product Information
- Material: Stainless Steel
- Mounting Type: Glass-to-Glass
- Glass Thickness: 8 mm, 10 mm, 12 mm
- Opening Angle: 135°
- Door Application: Shower Door
Additional Supplier Specification
- Hinge Swings：135 Degrees Open with 90 Degrees Inward and Outward Rotation
- Self-Closing within 25 Degrees of Closing Position
- For 5/16 – 1/2" (8 to 12 mm) Tempered Glass
- Bearing Capacity: 40 Kg / 2 Hinges
- Door Wide
- Application: 800-1000mm
- Passes 50,000 Opening & Closing Fatigue Tests
- Passes 48-Hour Salt Spray Test → SVA-511 90° Glass To Wall Offset Back Plate → SVA-512 90° Glass To Wall Full Back Plate → SVA-513 180° Glass To Glass → SVA-515 90° Glass To Glass
Ordering & Product Matching
Quote requests should include model CHF-SVA-514, required quantity, glass thickness or opening dimensions, material and finish. OEM packaging and mixed-product orders can be discussed for distributor requirements.
Dimensions and technical suitability must be confirmed against the final drawing, sample or application before ordering.
