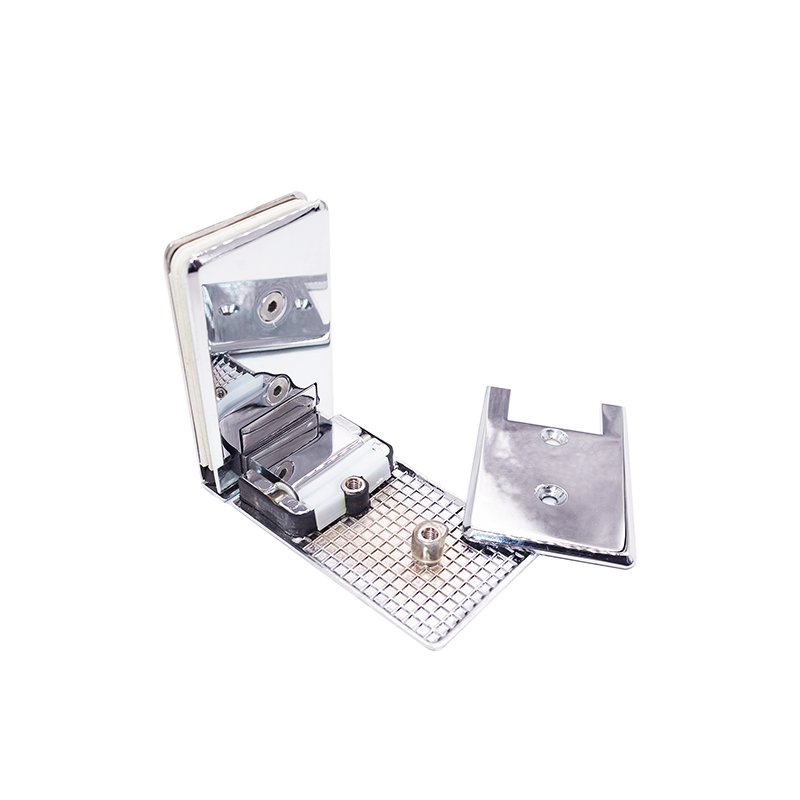

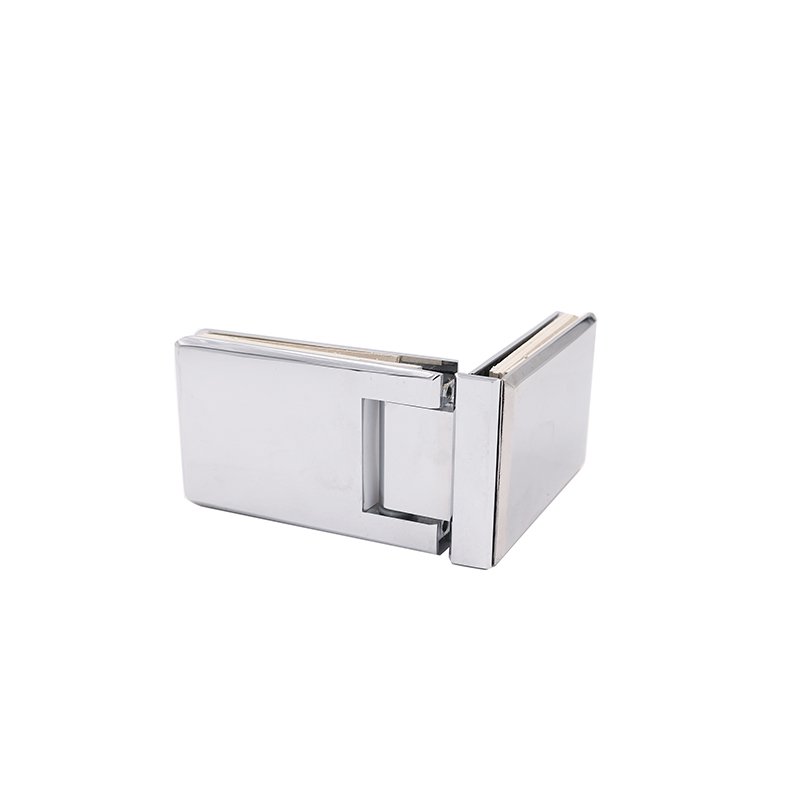

Long Beveled Series Glass To Glass Brass Hydraulic Door Hinge
This shower door hinges product is available for distributors, glass shops, installers and project suppliers. It can be matched against a drawing, sample, photograph or required application.
Product Information
- Material: Brass
- Mounting Type: Glass-to-Glass
- Glass Thickness: 8 mm, 10 mm
- Opening Angle: 90°
- Door Application: Shower Door
Additional Supplier Specification
- Hinge Swings: 90 Degrees Inward and 90 Degrees Outward
- Self-Closing within 25 Degrees of Closing Position
- For 5/16 – 3/8" (8 to 10 mm) Tempered Glass
- Bearing Capacity: 40 Kg / 2 Hinges
- Door Wide
- Application: 800-1000mm
- Passes 50,000 Opening & Closing Fatigue Tests
- Passes 48-Hour Salt Spray Test → SVA-351 90° Glass To Wall Offset Back Plate → SVA-352 90° Glass To Wall Full Back Plate → SVA-353 180° Glass To Glass → SVA-354 135° Glass To Glass
Ordering & Product Matching
Quote requests should include model CHF-SVA-355, required quantity, glass thickness or opening dimensions, material and finish. OEM packaging and mixed-product orders can be discussed for distributor requirements.

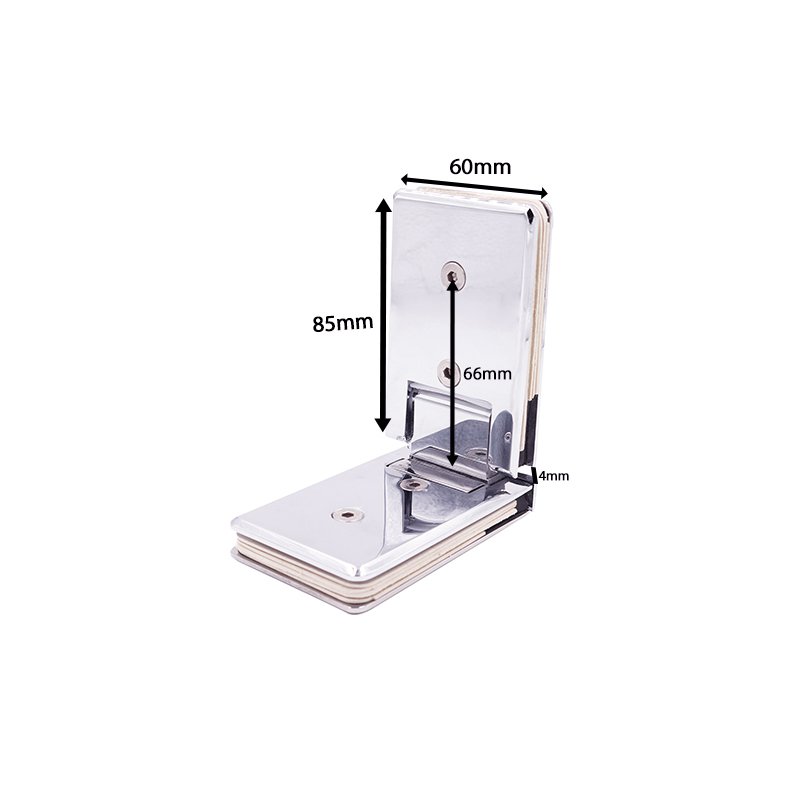

Dimensions and technical suitability must be confirmed against the final drawing, sample or application before ordering.
