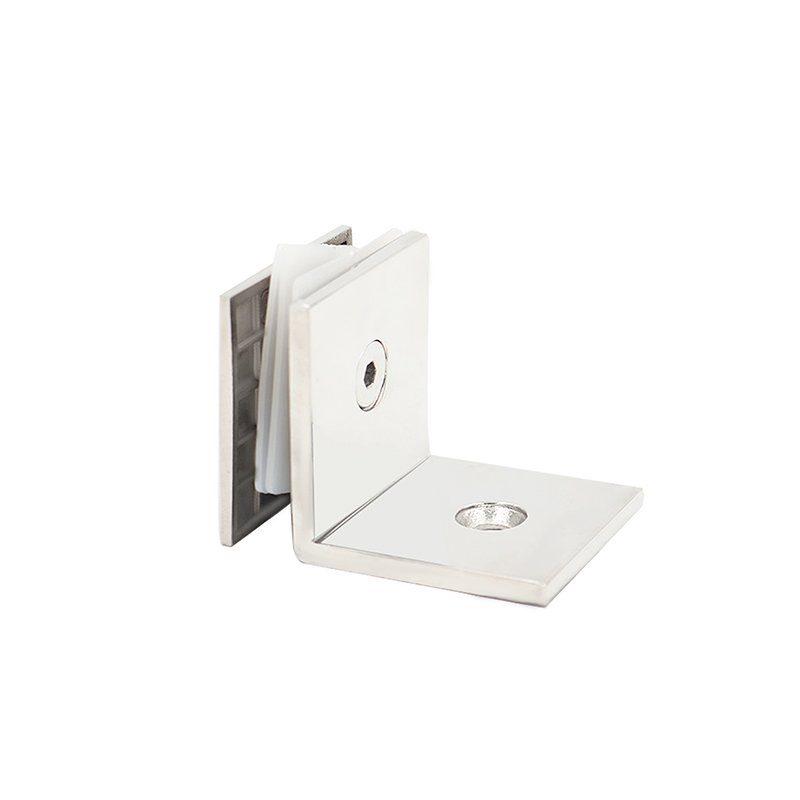

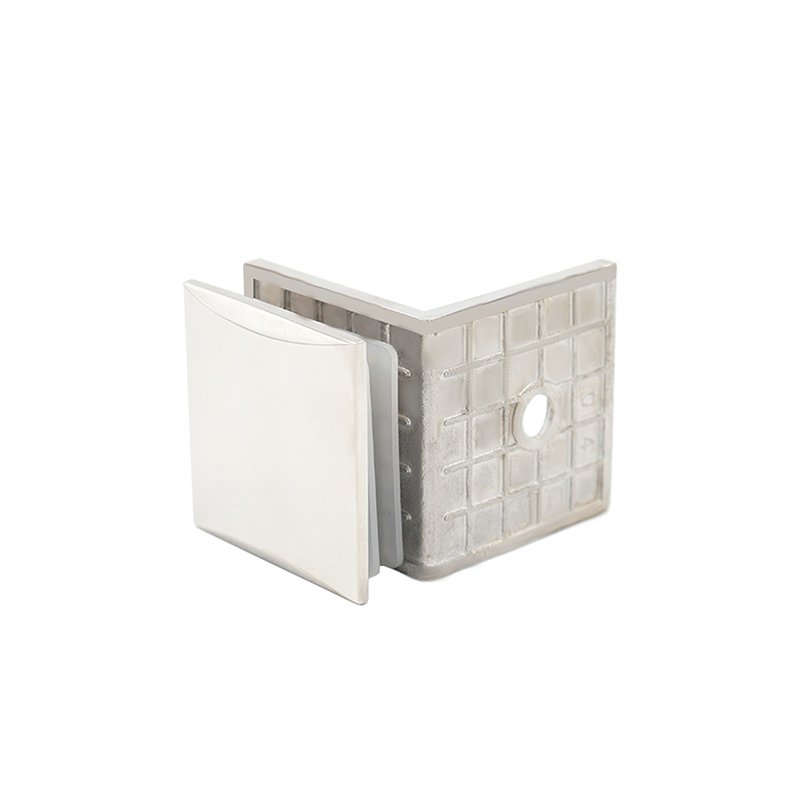

Glass Door Hardware 90 Degree Stainless Steel Wall Mounted Glass Clamp
This glass clamps product is available for distributors, glass shops, installers and project suppliers. It can be matched against a drawing, sample, photograph or required application.
Product Information
- Material: Stainless Steel
- Glass Thickness: 8 mm
- Opening Angle: 90°
- Door Application: Shower Door
Additional Supplier Specification

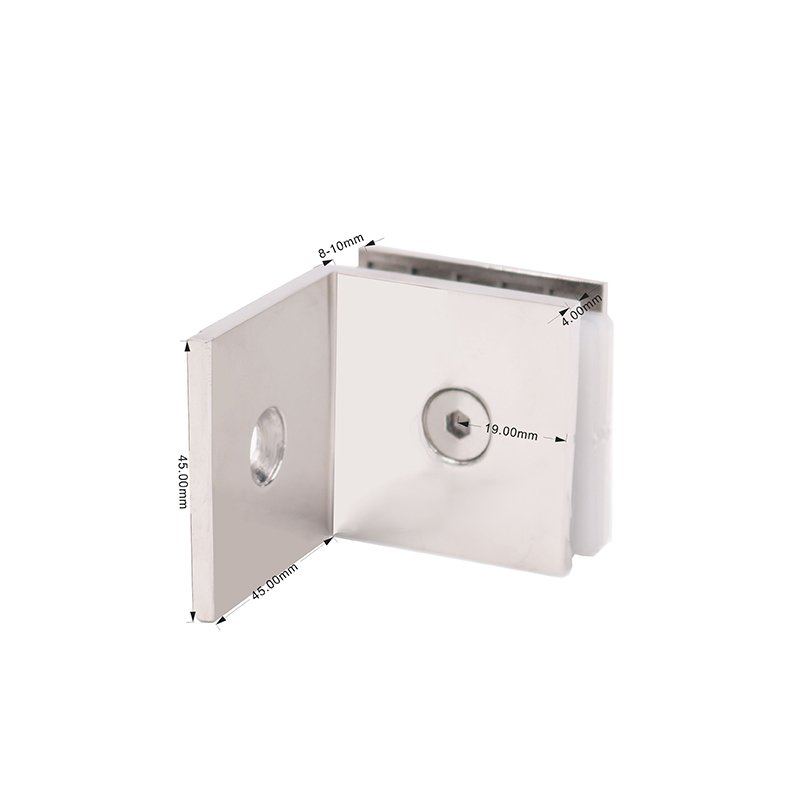

- For Use with 5/16" – 3/8" (8 mm to 10 mm) Tempered Glass
- Requires 3/4" （19mm）Diameter Hole for Installation
- Stainless Steel Wall Mount Screw Included
- Mounting Leg Provides Strength and Extra Stability
- Passes 72-Hour Salt Spray Test
Ordering & Product Matching
Quote requests should include model CHF-SVA-016B, required quantity, glass thickness or opening dimensions, material and finish. OEM packaging and mixed-product orders can be discussed for distributor requirements.
Dimensions and technical suitability must be confirmed against the final drawing, sample or application before ordering.
